1. GCS low voltage drawer type switch cabinet. GCS low-voltage switchgear is usually set with a clear 3-section position. The installation module hole of the main cabinet is e = 20mm and 100mm, the drawer layer height is 160mm, the bus is flat at the back, the upper and lower parts of the cable room are equipped with outlet channels, and the panel is provided with prominent labels for opening, closing, testing and extraction positions. However, the assembly of GCs drawer type switch cabinet is very difficult, and most of them are connected by bolts. The drawers are divided into five series: 1 / 2 unit, 1 unit, 1.5 unit, 2 unit and 3 unit. PC cabinet can do 3 at most, and MCC cabinet can install 22 drawer circuits at most.

2、GCK型低壓抽屜式開關柜。GCK型低壓開關柜的優點是分斷能力強、動熱穩定性高、內部構造合理。GCK型抽屜式開關柜電氣方案不死板、系統、使用范圍廣、各種方案單元靈活匹配。內部包含的回路數較多、節省使用空間、防護等級高、可靠、維修方便。抽屜分為1/2單元、1單元、2單元、3單元，多可裝9個單元，柜體可裝18個單元。抽屜具有合、分、試驗、抽出位置，不僅能確保正常的使用，還能夠檢修抽屜內的元件，根據抽屜的推進方式可分類為單撥插式，雙撥插式，搖進式。

2. GCK low voltage drawer type switch cabinet. GCK low voltage switchgear has the advantages of strong breaking capacity, high dynamic and thermal stability and advanced and reasonable internal structure. The electrical scheme of GCK drawer type switch cabinet has no dead board, system, wide application range and flexible matching of various scheme units. It contains a large number of circuits, saves space, has high protection level, is safe and reliable, and is convenient for maintenance. The drawer is divided into 1 / 2 unit, 1 unit, 2 unit and 3 unit, with a maximum of 9 units and 18 units in the cabinet. The drawer has closing, opening, testing and withdrawal positions, which can not only ensure normal use, but also safely overhaul the components in the drawer. According to the propulsion mode of the drawer, it can be classified into single pull-in type, double pull-in type and swing in type.

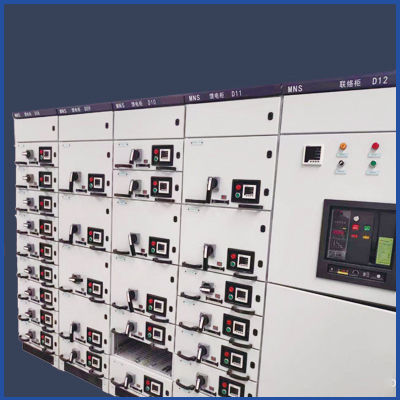

3、MNS型低壓抽屜式開關柜。MNS型低壓開關柜結構是組合式，MNS型抽屜式開關柜有標準型和非標型兩類，框架的全部結構件都鍍鋅或使用鍍鋅板、進口敷鋁鋅板折成型材?？蚣芙Y構使用普通工具也可以自行組裝，柜內隔板使用分段式多功能隔離板，PC柜和MCC柜可以混裝，抽屜層高200mm，可分為8E/4、8E/2、8E、16E、24E，實際使用高度是72E，多可裝36個出線回路。

3. MNS low voltage drawer type switchgear. The structure of MNS type low-voltage switchgear is combined. MNS type drawer type switchgear has two types: standard type and non-standard type. All structural parts of the frame are galvanized or folded into profiles with galvanized sheet and imported aluminum zinc coated sheet. The frame structure uses ordinary tools and can also be assembled by itself. The partition in the cabinet uses segmented multifunctional isolation board. PC cabinet and MCC cabinet can be mixed. The drawer layer height is 200mm and can be divided into 8e / 4, 8e / 2, 8e, 16e and 24E. The actual use height is 72e, and 36 outgoing circuits can be installed at most.

抽屜式開關柜維修方法

Maintenance method of drawer switch cabinet

1、在抽屜式開關柜發生故障的時候，我們要做的就是要弄清楚是什么型號的開關柜。因為不同型號的開關柜在維修和使用方法上面也是有著一定區別的。根據具體的型號我們也比較容易進行維修，在熟悉一些性的知識后。我們要做的就是判斷開關柜發生故障的原因是什么，所涉及到的零部件是什么，接下來我們要做的就是根據所判斷出來的問題進行調整。

1. When the drawer switch cabinet fails, the first thing we need to do is to find out what type of switch cabinet it is. Because different types of switchgear also have certain differences in maintenance and use methods. According to the specific model, it is also easier for us to carry out maintenance. After being familiar with some professional knowledge. What we need to do is to judge the cause of the switch cabinet failure and the parts involved. Next, we need to make adjustments according to the judged problems.
